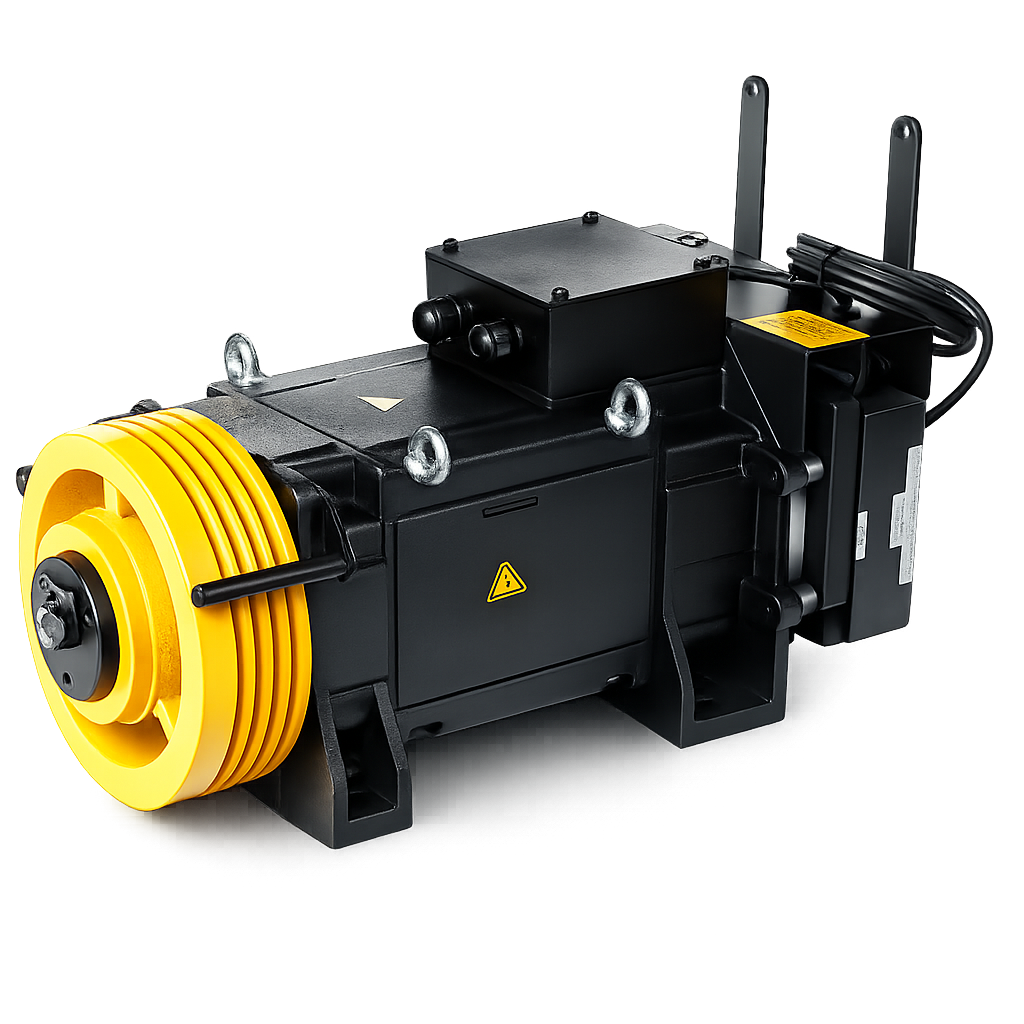

Gearless Elevator Machine

A gearless elevator motor is a permanent magnet synchronous motor (PMSM) that drives the traction sheave directly without a gearbox. The motor produces high torque at low speed, rotating the sheave and moving the elevator ropes without any intermediate mechanical transmission. This results in higher efficiency, smoother ride quality, lower noise, and significantly reduced maintenance compared to traditional geared traction machines.

A gearless lift motor uses permanent magnets on the rotor and electromagnetic coils on the stator. When alternating current flows through the stator windings, it creates a rotating magnetic field. The permanent magnets on the rotor follow this field synchronously, producing rotational motion. The traction sheave is mounted directly on the rotor shaft, so there is no gearbox, belt, or coupling between the motor and the sheave — energy transfers with minimal loss.

Gearless motors offer up to 50% higher energy efficiency than geared systems, with motor efficiency exceeding 95%. They eliminate gear oil, gear wear, and gearbox alignment — the most maintenance-intensive aspects of geared machines. Noise levels drop to as low as 45 dB, making them suitable for residential buildings. The compact size enables machine-room-less (MRL) installations, saving valuable building space.

An MRL (Machine-Room-Less) elevator places the drive system inside the hoistway shaft instead of a separate machine room above the building. This is only possible with compact gearless motors — traditional geared machines are too large. MRL elevators save construction costs by eliminating the machine room, use 70–80% less energy than hydraulic systems, and are now the standard for new residential and mid-rise commercial buildings.

Gearless permanent magnet lift motors achieve electrical efficiency of 93–95%, compared to 70–85% for geared induction motor systems. Combined with regenerative drives that feed braking energy back to the building grid, a gearless elevator system can achieve VDI 4707 A-class energy rating — the highest energy efficiency classification for elevators. This reduces elevator energy consumption by 30–50% compared to conventional geared systems.

A high pole count (66–88 poles in EMF SQML motors) provides a wider frequency range for the motor controller, enabling extremely smooth torque delivery at low speeds. This directly translates to better ride comfort, reduced vibration, and precise floor leveling. EMF 66-pole motors offer 4.125 times the frequency range of conventional 16-pole motors, giving the drive system much finer control over elevator motion.

EMF SQML gearless lift motors cover carrying capacities from 320 to 2,000 kg and travel speeds from 0.5 to 4 m/s. The range includes models with 20 to 88 poles, dual disk brakes for safety, and both 230V and 400V configurations. The compact SQML73 model — at just 205 mm width and 65 kg — is one of the smallest gearless lift motors in its class, ideal for MRL installations with limited shaft space.

Gearless lift motors require significantly less maintenance than geared systems. There is no gearbox oil to change, no gears to wear, and no belt tension to adjust. Maintenance is limited to periodic brake inspection, bearing checks, and electrical connection verification. This reduces elevator downtime and lowers total cost of ownership over the 20–25 year typical elevator lifecycle.

Yes. Gearless motors are widely used in elevator modernization to replace aging geared traction machines. EMF SQML motors are designed to fit into existing shafts with minimal structural modification. Modernization with gearless technology typically delivers 30–50% energy savings, improved ride comfort, reduced noise, and compliance with current safety and energy standards — often qualifying the building for green building certifications.

Hydraulic elevators use an oil pump and cylinder to move the cab, while gearless traction elevators use a motor and ropes. Gearless systems are 70–80% more energy efficient, travel at higher speeds, reach greater heights, and produce less noise. Hydraulic systems require a machine room, oil storage, and periodic oil changes. For new installations, gearless traction with permanent magnet motors is the industry standard for buildings above 3–4 floors.
