iPG Generator

A permanent magnet generator (PMG) is a synchronous generator that uses permanent magnets on the rotor instead of field windings to create a magnetic field. Because no excitation current is needed, PMGs eliminate brushes, slip rings, and field winding losses. This results in higher electrical efficiency, lower maintenance, and more compact construction compared to conventional wound-field alternators.

A conventional alternator requires external DC current to energize its field windings, which introduces copper losses, brush wear, and slip ring maintenance. A permanent magnet generator produces its magnetic field from rare-earth magnets with zero excitation power. This gives PMGs higher efficiency (up to 96%), lower heat generation, no brush or slip ring replacement, and reliable output even at variable speeds — critical advantages in wind and hydro turbine applications.

A direct drive generator connects directly to the turbine shaft without a gearbox. In conventional systems, a high-speed generator requires a gearbox to step down turbine RPM. Direct drive eliminates the gearbox entirely, removing the most failure-prone and maintenance-intensive component in wind and hydro installations. EMF iPG generators are designed for direct drive operation at speeds from 100 to 1,500 RPM.

Direct drive generators eliminate gearbox failures, oil changes, gear alignment, and mechanical transmission losses. In wind turbines, gearbox failure is the leading cause of unplanned downtime. Removing the gearbox reduces the overall nacelle weight, simplifies the drivetrain, lowers noise and vibration, and can reduce levelized cost of energy (LCOE) by 10–20% over the turbine lifetime through reduced maintenance and increased availability.

Permanent magnet generators are used in small to medium wind turbines (1–500 kW), micro and small hydro turbines, diesel and gas generator sets, marine propulsion systems, and distributed power generation. Their ability to operate efficiently across a wide speed range makes them particularly suited for renewable energy applications where input speed varies with wind or water flow conditions.

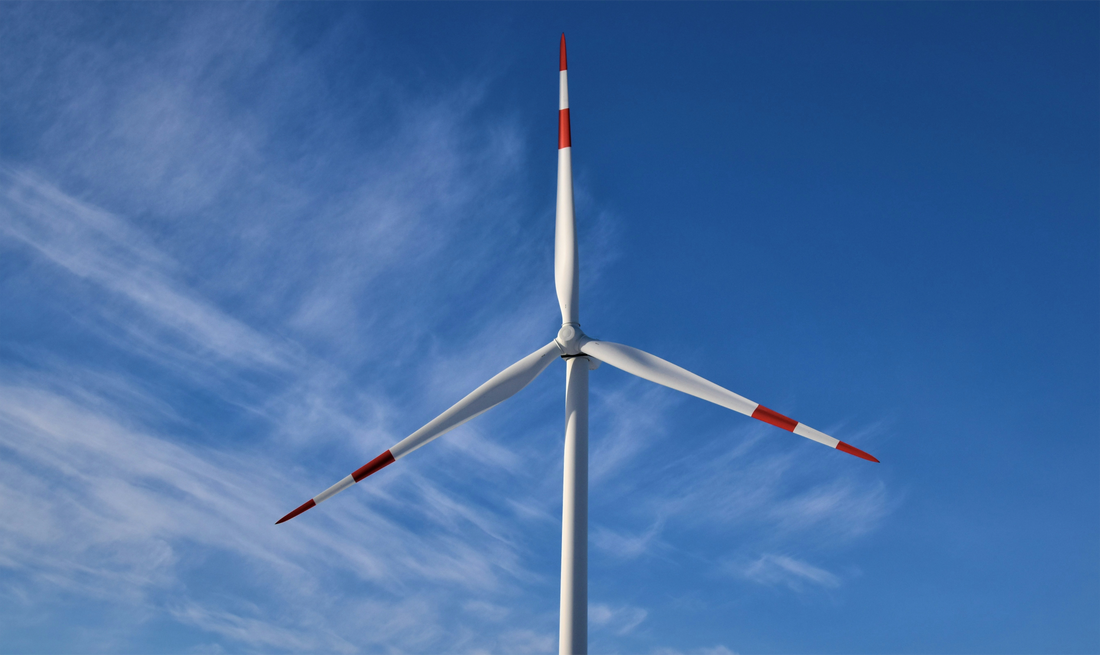

Wind turbines operate at constantly varying speeds, so the generator must perform efficiently across a wide RPM range. PMGs maintain high efficiency from low to high speeds without excitation adjustments. In direct drive configuration, they eliminate the gearbox — the component responsible for approximately 20% of wind turbine downtime. This combination of variable-speed efficiency and mechanical simplicity makes PMGs the preferred technology for modern small and medium wind installations.

Yes. PMGs are well suited for micro and small hydro applications. They operate efficiently at the low and variable speeds typical of water turbines, and direct drive configuration eliminates gearbox maintenance — especially valuable at remote hydro sites where access is difficult. Studies have shown that replacing conventional induction generators with permanent magnet direct drive systems can significantly increase annual energy output at low-head hydro sites.

Modern permanent magnet generators achieve electrical efficiency of 90–96%, compared to 80–90% for conventional wound-field alternators. The efficiency gain comes from eliminating excitation losses, reducing copper losses in the rotor, and removing gearbox transmission losses in direct drive configurations. Higher efficiency translates directly to more kilowatt-hours generated per year from the same turbine.

PMGs require minimal maintenance compared to conventional alternators. There are no brushes, slip rings, or field windings to service. In a direct drive system without a gearbox, maintenance is limited to periodic bearing inspection and electrical connection checks. This makes PMGs ideal for remote installations such as offshore wind, mountain hydro sites, and unmanned power stations where access for maintenance is costly.

Yes. Permanent magnet generators can be connected to 50 Hz or 60 Hz grids at standard voltages (400V, 690V) through a power converter. The converter allows the generator to operate at variable speed while delivering grid-compliant power. EMF iPG generators support both grid-tied and off-grid (island mode) operation with pole configurations from 8 to 48 poles to match various turbine speed ranges.
